Supercharger Main Brackets

Unless specified otherwise, all measurement values are in Metric '''Millimetres (mm)'''. Except for the thickness of the steel which is 3/8" or 1/4".

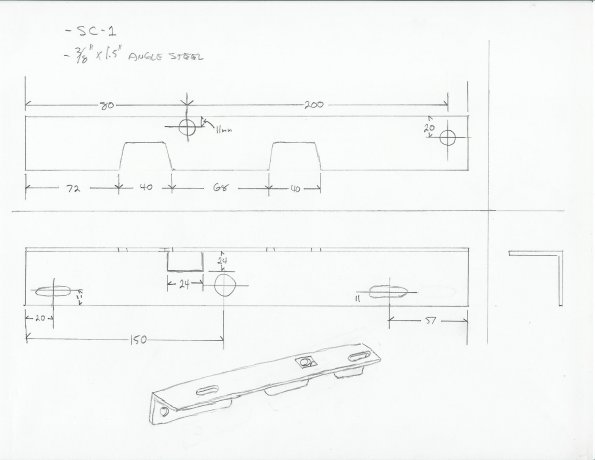

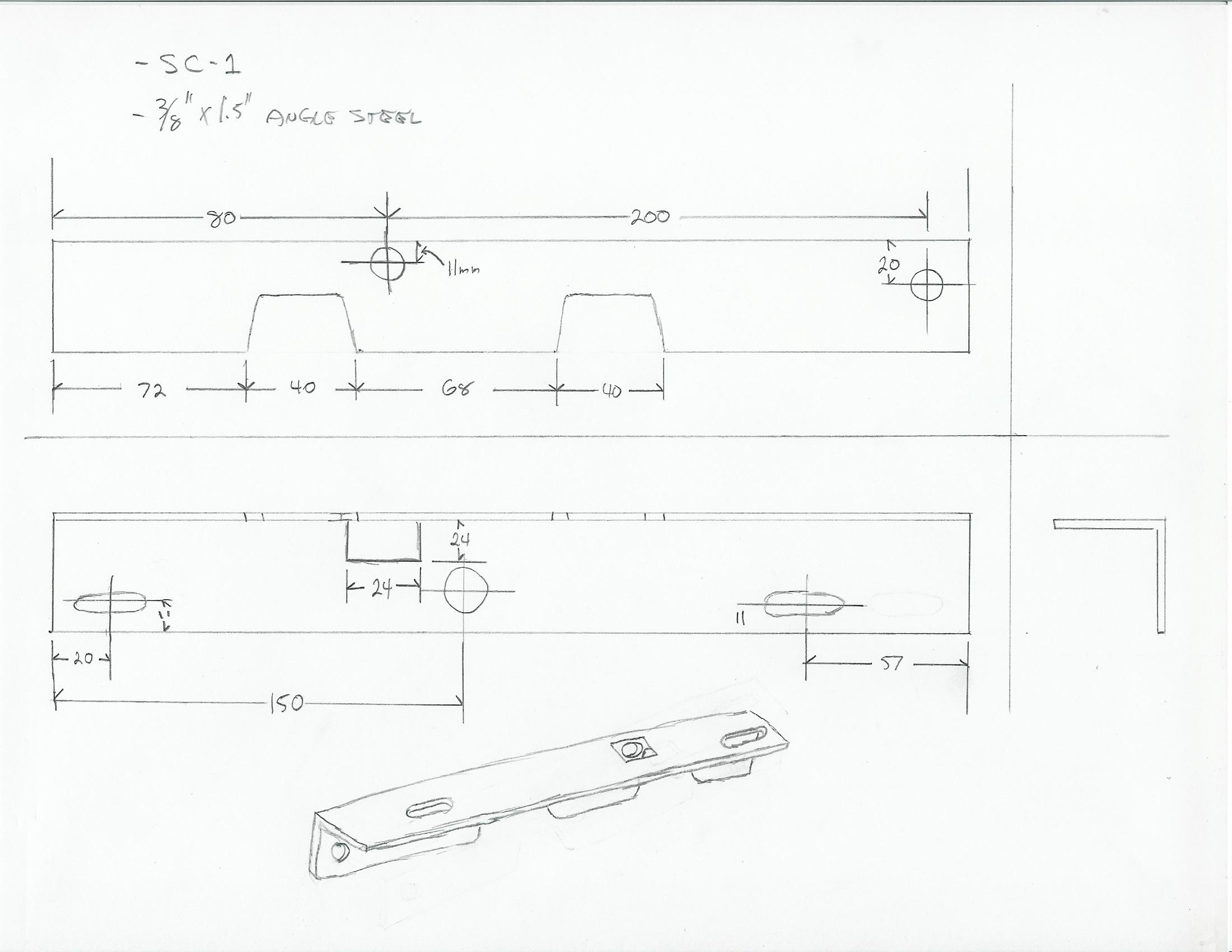

Bracket 1

bracket 1

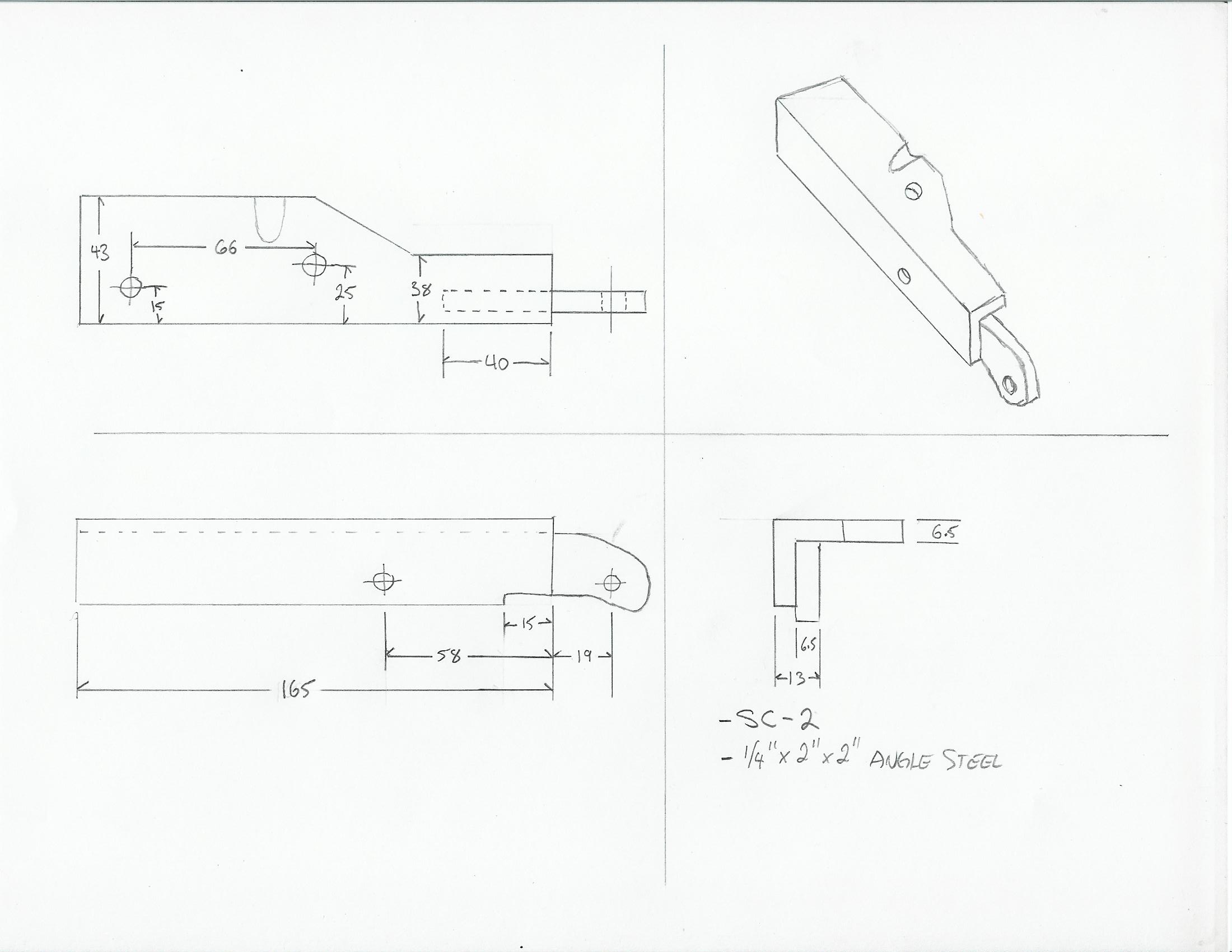

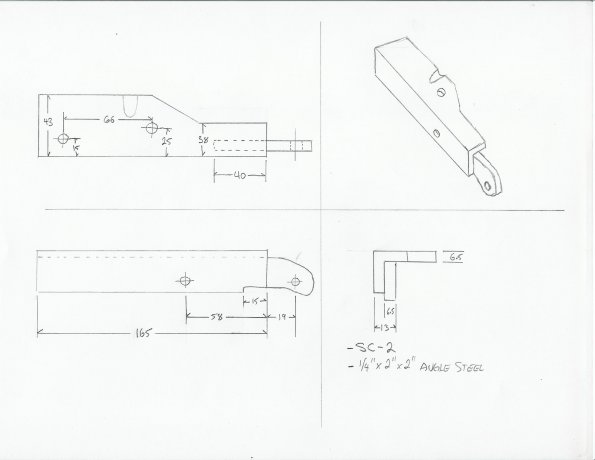

Bracket 2

bracket 2

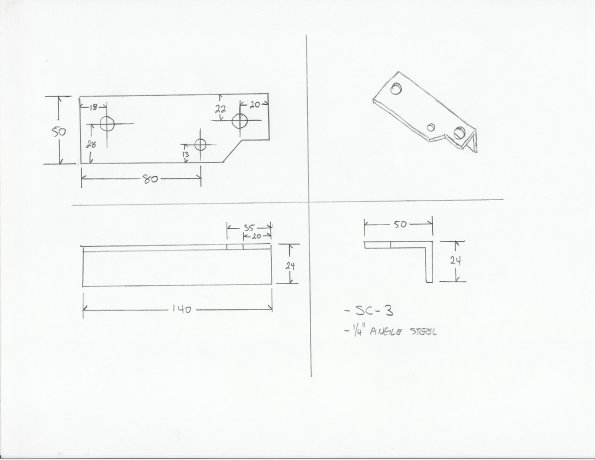

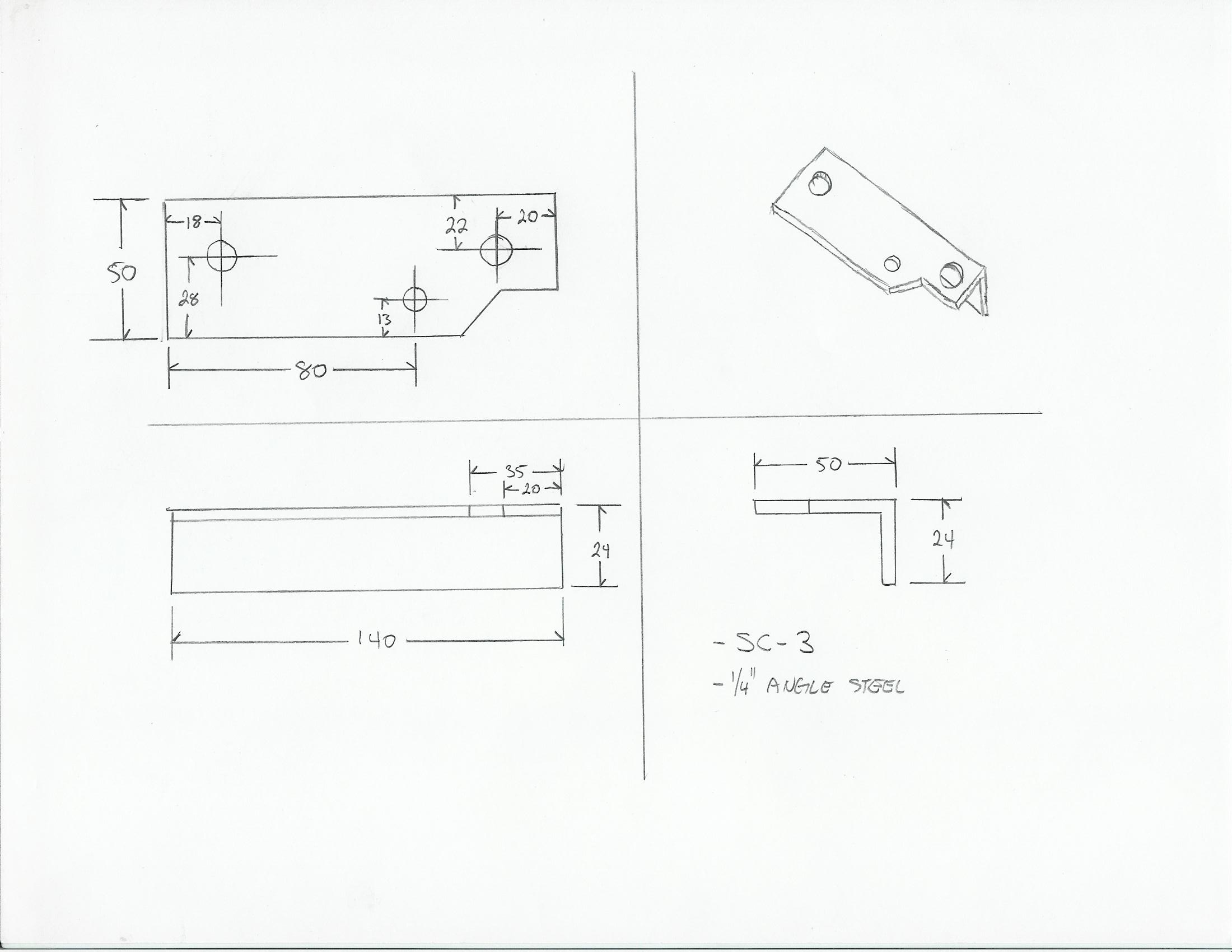

Bracket 3

bracket 3

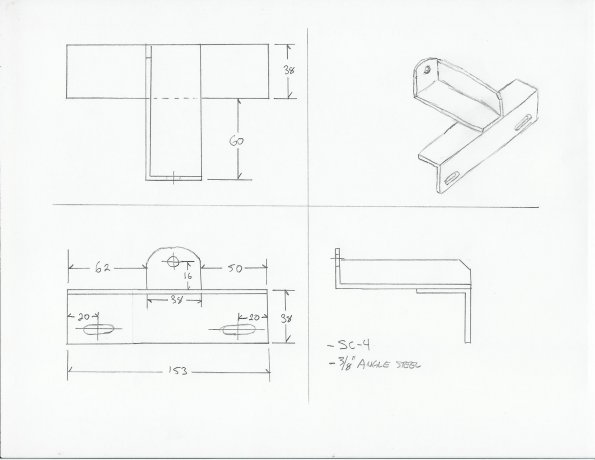

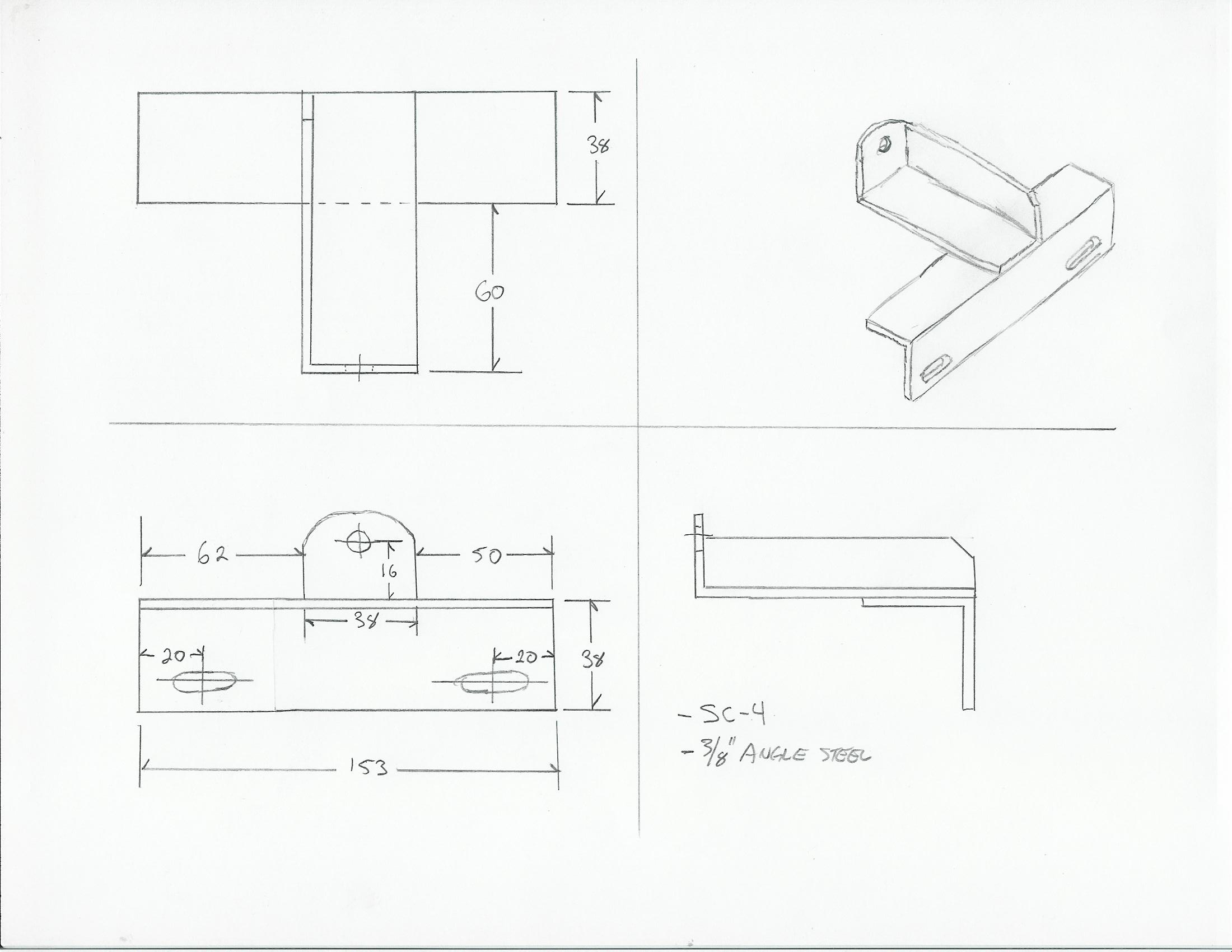

Bracket 4

bracket 4

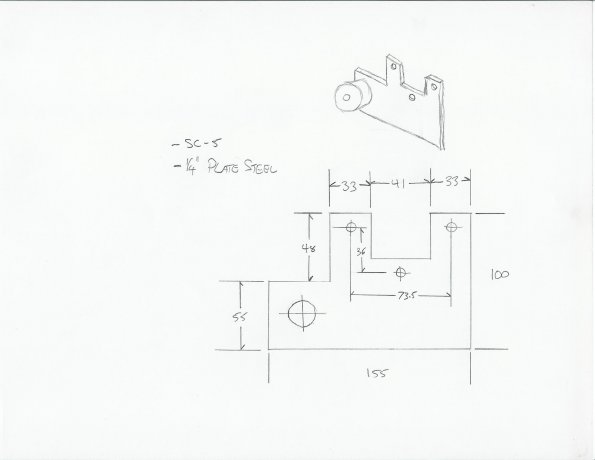

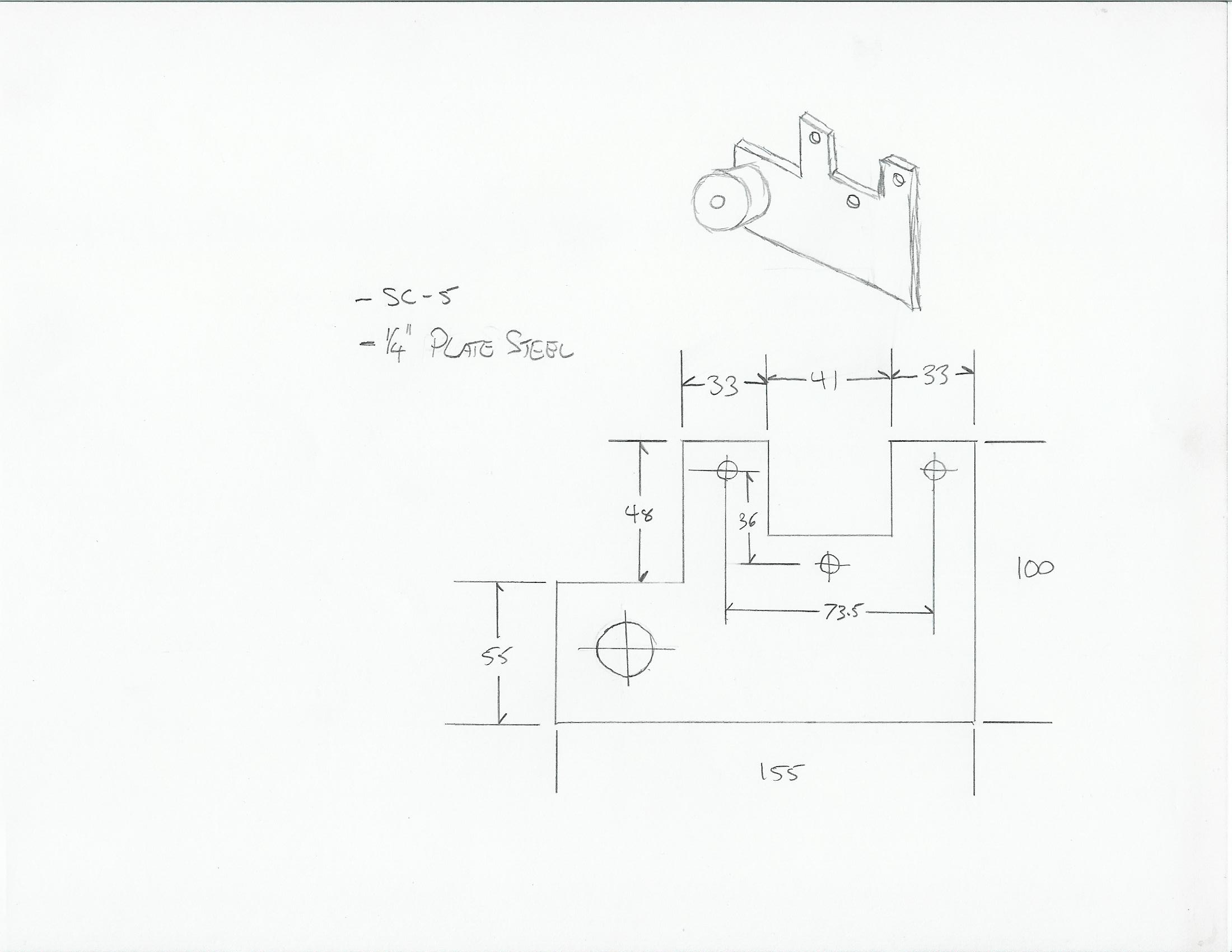

Bracket 5

bracket 5

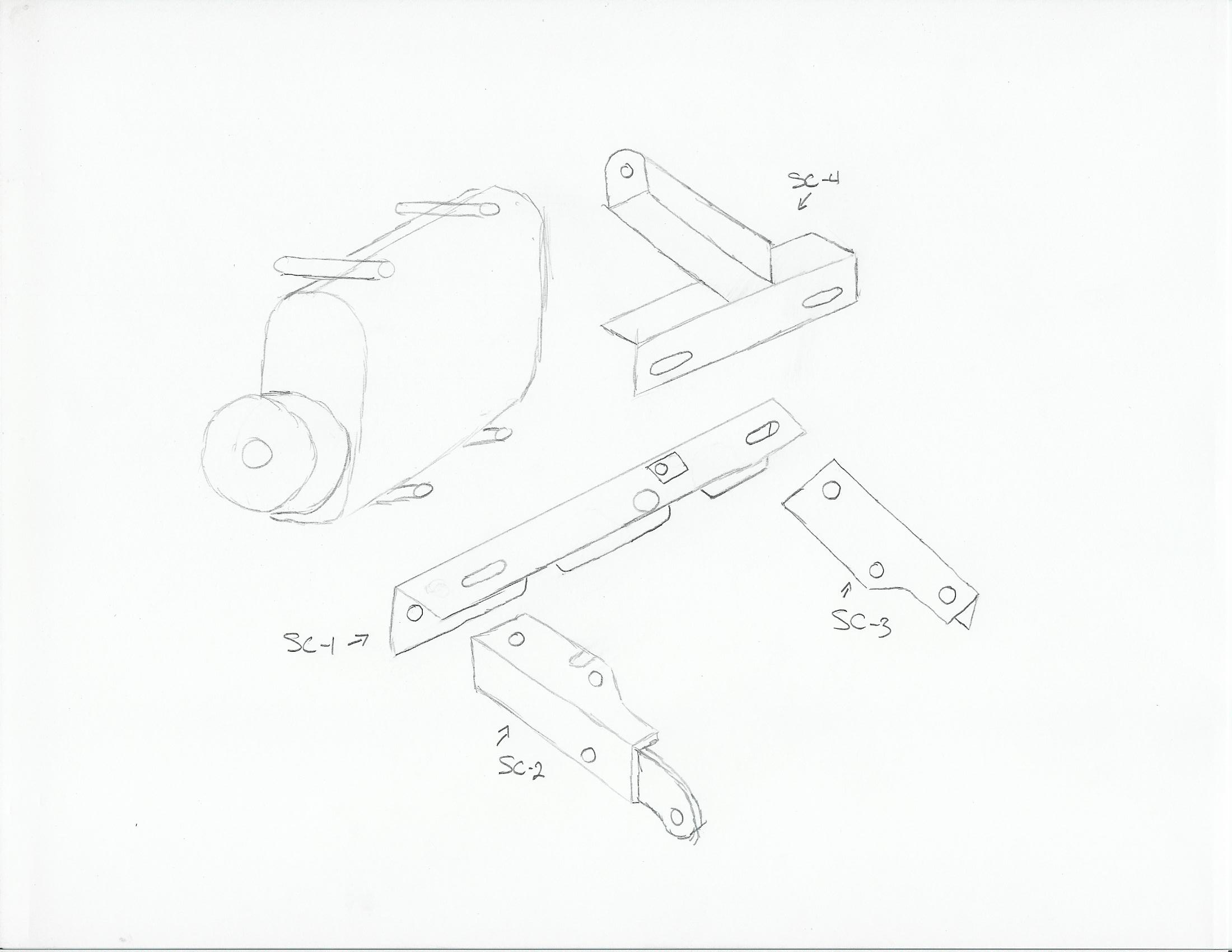

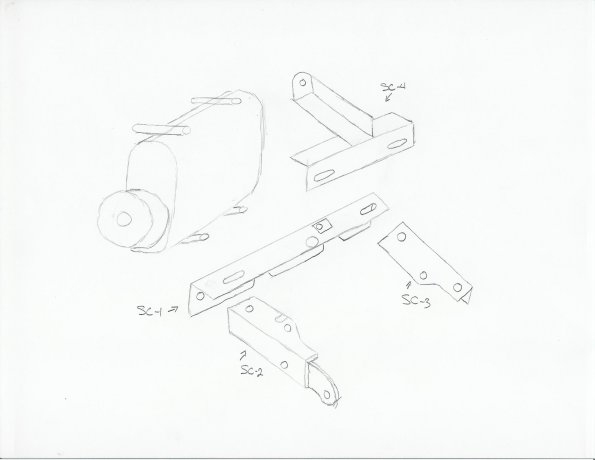

Bracket Layout

bracket layout

Supercharger Intake Box for TB Relocate

tb relocate

All Diagrams

All Diagrams Here
